S911BTools

S911 Binary Tools

$7.00

Out of stock

Product Description

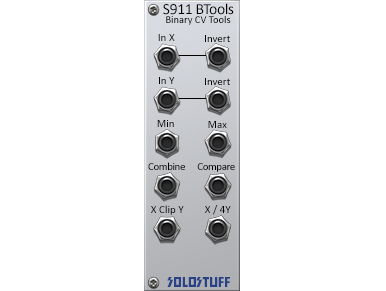

Binary tools are functions which take two inputs and give one output. The S911 provides six such functions, plus two inverters as complementary. The tools are:



Min: Minimum of X and Y



Max: Maximum of X and Y



Combine: Will chop and put the positive side of Y with parts of X to generate a new combined waveform.



Compare: Gives 1V when X > Y. And gives 0V otherwise.



X Clip Y: Clips X by the absolute value of Y. So when |X|>|Y| the output is either +|Y| or -|Y| depending on the sign of X. Otherwise, the output is X.



X / 4Y: As the name says. Note that the output here is approximate



Actually that last one was supposed to be X/Y. But dividing over 4 gives much more usable values that live between 0V to 1V. This also internally uses a method to avoid dividing by zero!!
