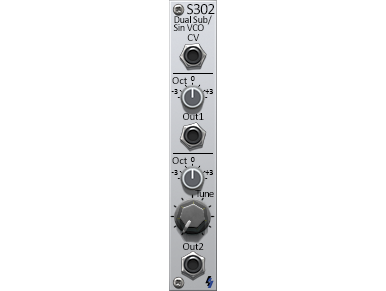

S302 Dual Sub/Sin VCO

Product Description



(This module is included in the System B)



Mainly used as an advanced sub oscillator. The S302 is basically two sine oscillators which have a common 0.1V/oct* CV input with a manual octave knob per oscillator. The second oscillator has a tune knob with a range of 1 octave. A sub oscillator may aid in “fattening” the sound specially when used with the rather unbiased S310. Since the S310 does not amplify nor attenuate bass, mid range or treble.



The octave knob has a very wide range beyond whats usual for a sub oscillator. This allows the S302 to act as an independent dual pure sine VCO that can be useful in many situations such as ring modulation, experimentation or testing frequency/phase responses of filters.



*0.1V/Oct is analogous to 1V/Oct which is the method of choice for tuning in Eurorack. We obviously choose this forĀ ease of interconnectivity.
